General lighting
Ten connection blocks provide 40 general-lighting channels for inserts, feature lamps and coordinated playfield illumination.
LIGHTSHOW
Dedicated lighting control for general illumination, RGB and RGBW effects across the PKONE platform.
Build coordinated playfield animation, connect directly to a host PC, and extend the lighting network over CAN bus.
Lighting built for the whole playfield
Lightshow brings general lamps and addressable colour effects together on one board. It can run as part of a PKONE chain or connect directly to a host PC for setup and control.
40general-lighting channels
8RGB / RGBW outputs
USBhost connection
CANexpansion bus
5 Vpower input
150 × 75board size in mm
One board for layered lighting effects
RGB and RGBW
Eight four-wire outputs support addressable RGB or RGBW lighting, with data, negative and positive connections identified on the PCB map.
Host and expansion
Connect a PC through USB-B, receive CAN bus data through P1 and continue the PKONE chain from P2 using standard RJ45 cabling.
Addressable setup
An onboard Address ID selector allows multiple Lightshow boards to operate within the same PKONE system.
Diagnostics
Status indicators make board activity and power conditions visible, while the CAN bus termination jumper supports reliable end-of-line setup.
Compact installation

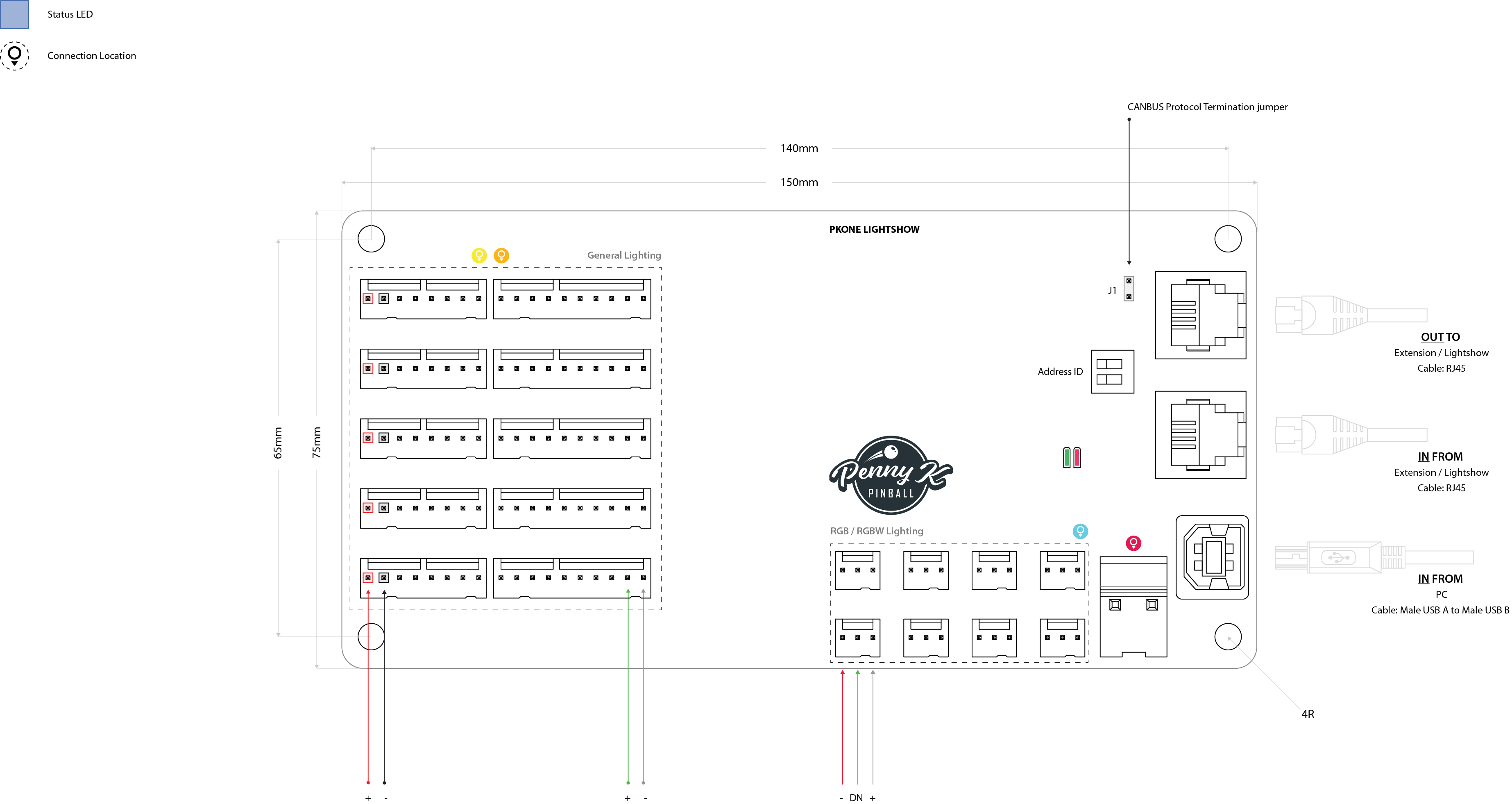

The board measures 150 × 75 mm, with 140 × 65 mm mounting-hole centres and R4 corner detail shown on the supplied map.
Every lighting connection in one view
The map identifies general-lighting banks, RGB and RGBW outputs, power, USB, CAN bus, board addressing, termination and mechanical dimensions.

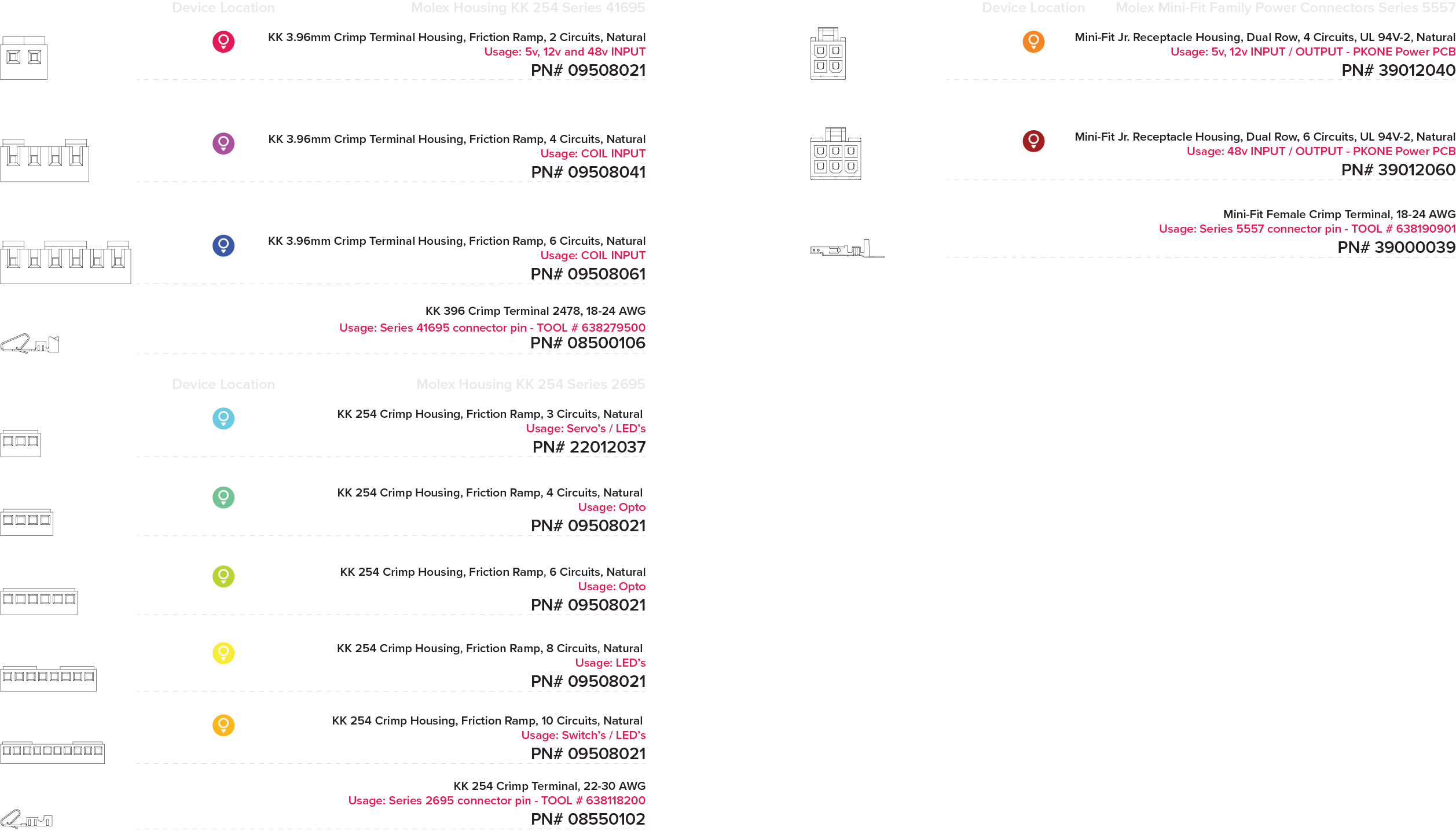

Housings and crimp families
Use the coloured location markers to match the board’s lighting and power connections to their housing family and terminal size.
KK 3.96 mm
Two-circuit housing used for the board’s 5 V power connection.
- Housing family
- 41695
- Terminal
- 08500106
- Wire range
- 18–24 AWG
KK 2.54 mm · 4 circuit
Four-circuit housings used for the eight RGB and RGBW lighting outputs.
- Housing family
- 2695
- Terminal
- 085550102
- Wire range
- 22–30 AWG
KK 2.54 mm · 10 circuit
Ten-circuit housings used across the general-lighting output banks.
- Housing family
- 2695
- Terminal
- 085550102
- Wire range
- 22–30 AWG
Connector suppliers
Molex KK Series
Molex Mini-Fit Jr.
Build a brighter playfield
Add Lightshow to your PKONE system for coordinated general, RGB and RGBW lighting.
